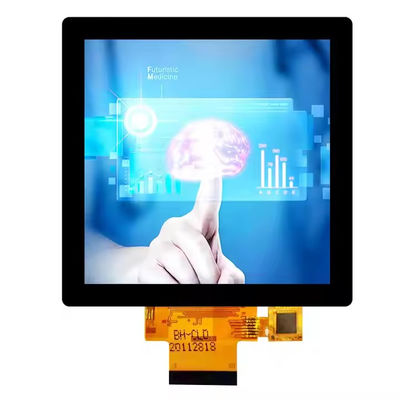

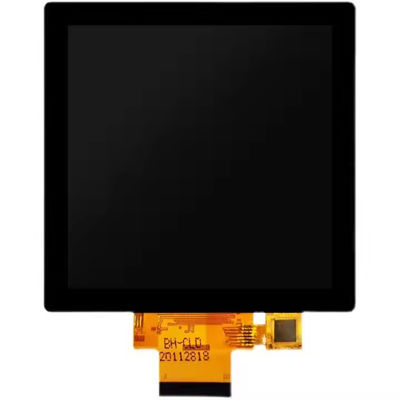

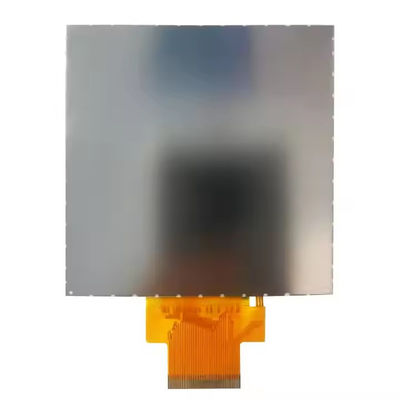

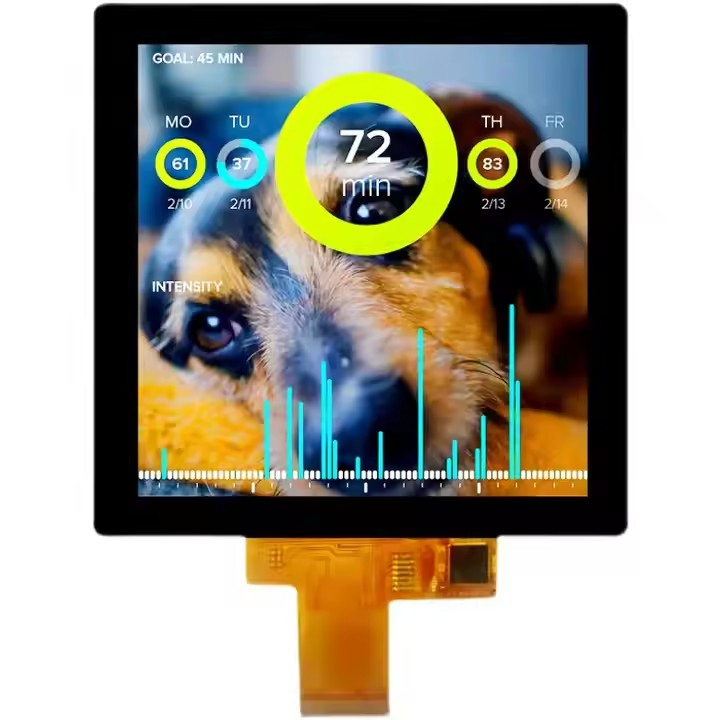

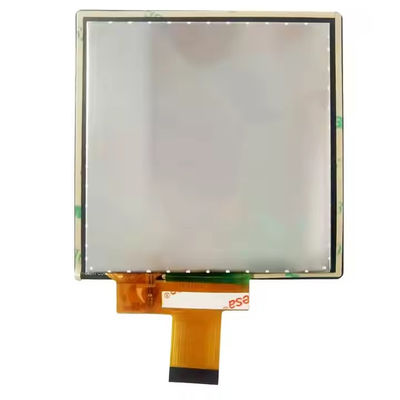

3.95 Inch 480*480 Resolution TFT LCD Display with 300CD/M2 Brightness and RGB Interface
Detalhes do produto:
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 500 |
|---|---|
| Preço: | 8.5 |
|
Informação detalhada |
|||
| Modelo No.: | RYT-3.95BT4S2P015-T1 V3 | Tipo de tela de toque: | Capacitivo |
|---|---|---|---|
| Exibir tecnologia: | Tft | Tipo LCD: | TFT-LCD /IPS |
| Resolução de exibição: | 480RGB (H) X480 (V) | Interface: | Rgb |
| Painel de toque: | CTP | Tamanho do esboço: | 82.90 ((W) * 82.90 ((H) * 3.28 ((T) mm |
| Área ativa: | 71.86 (H) x 70.18 mm | Modelo da exposição: | Normalmente Branco/Transmissivo |
| Temperatura operacional: | -20C ~ 70C | Temperatura de armazenamento: | -30c ~ 80c |
| Brilho: | 300CD/M2 | MOTORISTA DE IC: | ST7701S |
| Visualizando direção: | IPS | ||
| Destacar: | 3.95 Inch TFT LCD Display,480*480 Resolution TFT LCD Module,300CD/M2 Brightness LCD Screen Module |
||
Descrição de produto
3.95 Inch 4" 480*480 Square TFT LCD Display with RGB Interface CTP
Product Overview
3.95 inch 4" 480*480 square TFT LCD display with RGB interface capacitive touch screen LCD module
| Model NO. | RYT-3.95BT4S2P015-T1 V3 |
|---|---|
| Size | 3.95 inch |
| Resolution | 480*RGB*480 |
| Interface | RGB |
| LCD Type | TFT-LCD /IPS |
| Viewing Direction | IPS |
| Outline Dimension | 82.90(W)*82.90(H)*3.28(T)MM |
| Active Size | 71.86 (H) x 70.18MM |
| Specification | ROHS REACH ISO |
| Operating Temp | -20ºC ~ +70ºC |
| Storage Temp | -30ºC ~ +80ºC |
| IC Driver | ST7701S |
| Brightness | 300cd/m2 |
| Touch Panel | with CTP |
| Application | Portable electronics; Automotive displays; Industrial equipment; Medical devices; Home automation systems; Consumer electronics |
| Country of Origin | China |
Applications
- Portable electronics: Smartphones, tablets, digital cameras, portable gaming consoles, smartwatches, and handheld GPS devices
- Automotive displays: Control panels or dashboard displays in vehicles
- Industrial equipment: Control panels, HMI systems, and monitoring systems
- Medical devices: Patient monitors, diagnostic equipment, and medical imaging devices
- Home automation systems: Touchscreen control panels for smart home devices
- Consumer electronics: Portable DVD players, digital photo frames, and handheld gaming devices
Product Advantages
- Compact size: Easy integration into space-limited applications
- Vibrant colors and contrast: Produces vivid colors with excellent contrast
- Wide viewing angles: IPS technology maintains quality from multiple positions
- Energy-efficient: Low power consumption extends battery life
Company Profile
Royal Display Co.Ltd specializes in the design, development and production of LCD display module full scheme for more than 10 years. Our products include standard and custom-made solutions including Segment LCD, Character LCD, Graphic LCD, COG LCD, TFT color display, OLED display, and 7 segment LED display.
Frequently Asked Questions
Q1: How do we place an order?
A1: Please send us an email specifying the item No., replacements, quantity, and other specifications.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: Normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Deseja saber mais detalhes sobre este produto
