2.0inch 480*360 IPS TFT LCD Module with Mipi Interface for High Resolution Display
Detalhes do produto:
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 500 |
|---|---|
| Preço: | 5.5 |
|
Informação detalhada |
|||
| Tamanho da exibição: | 2 polegadas | Resolução de exibição: | 480RGB (H) X360 (V) |
|---|---|---|---|
| Tipo de interface: | Mipi | Tipo LCD: | TFT-LCD /IPS |
| Ângulo de visualização: | todos | Dimensões de esboço: | 46.10*40,0*2,53 mm |
| Área ativa: | 40,80*30,62 mm | Driver IC: | ST7701S |
| Temperatura operacional: | -20C ~ 70C | Temperatura de armazenamento: | -30c ~ 80c |
| Brilho: | 280-330CD/M2 | Exibir tecnologia: | Tft |
| Painel de toque: | sem | Modo de unidade: | Exibição em cores |
| Capacidade de produção: | 300K/Month | ||
| Destacar: | 2.0inch TFT LCD Module,480*360 TFT LCD Display,IPS TFT LCD Module |
||
Descrição de produto

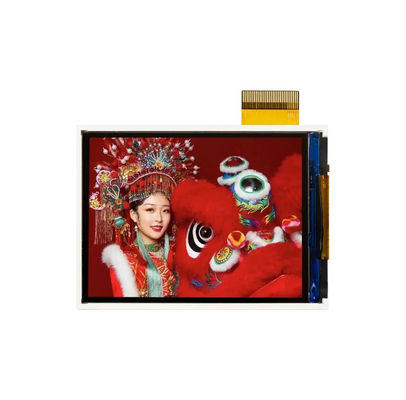

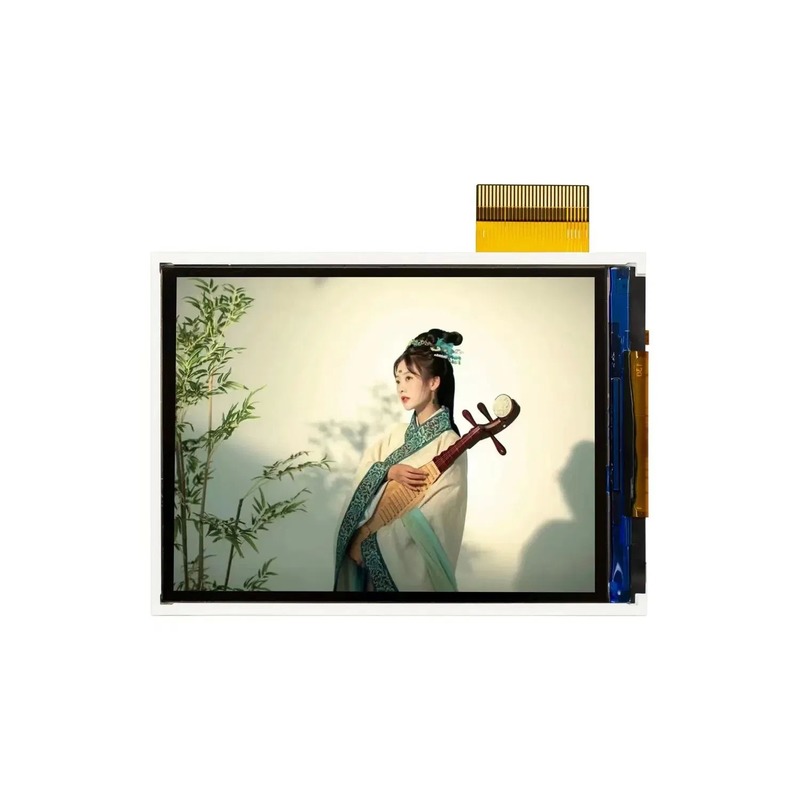

2.0inch 480×360 IPS TFT LCD with Mipi Interface
Product Description
| Model NO. | RYT-2.0 |
|---|---|
| Size | 2 inch |
| Resolution | 480×RGB×360 |
| Interface | MIPI |
| LCD Type | TFT-LCD /IPS |
| Viewing Direction | IPS |

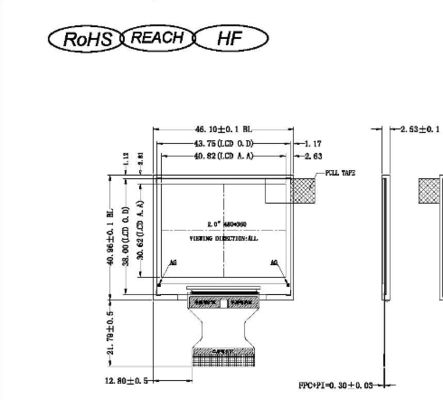

| Outline Dimension | 46.10×40.0×2.53 |
| Active Size | 40.80×30.62 |
| Specification | ROHS REACH ISO |
| Operating Temp | -20ºC ~ +70ºC |
| Storage Temp | -30ºC ~ +80ºC |
| IC Driver | ST7701S |
| Brightness | 280-330CD/M2 |
| Touch Panel | Without |
| Application | Portable electronics; Automotive displays; Industrial equipment; Medical devices; Home automation systems; Consumer electronics |
| Country of Origin | China |
Applications
The 2.0-inch TFT screen is a display screen suitable for handheld devices and small electronic products.
- Ideal for wearable devices such as wristbands and watches due to moderate size and high-resolution display
- Mobile medical equipment including blood pressure monitors and blood glucose meters
- Mobile game consoles requiring high resolution and smooth operation
- Industrial instruments needing miniaturized design with small-sized TFT display
Product Advantages
- High resolution and contrast for clear, vivid images
- Energy efficient LCD technology extends battery life
- High color saturation for bright, true-to-life images
- Wide viewing angle improves user experience and shared viewing
- Fast response speed supports dynamic images and video streaming
Company Profile
Royal Display Co.Ltd specializes in the design, development and production of LCD display module solutions for over 10 years.
Our product range includes standard and custom-made solutions including Segment LCD, Character LCD, Graphic LCD, COG LCD, TFT color display, OLED display, and 7 segment LED display. We support various film types (TN, HTN, STN, FSTN, TFT) and processes (COG, TAB, COB, SMT) with a production capacity of 300K different kinds of LCM/LCD per month.
FAQ
Q1: How do we place an order?
A1: Please send us an email specifying the item No., replacements, quantity, and other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
