Custom Size Capacitive/ Resistive Touch Screen Panel Various Glass Thickness Acceptable

Certificado
CHINA Royal Display Co.,Limited Certificações
CHINA Royal Display Co.,Limited Certificações
Revisões do cliente
Exposição real, fornecedor perfeito do LCD, resposta rápida, agradecimentos para a cooperação.

—— Beata do Polônia

Não recebeu os lcds hoje, nenhuns dano e teste bem, agradecimentos.

—— Natalya Kryukova de Rússia

Entrega rápida e boa qualidade, eu estou feliz com exposição real, eu pedirei mais tarde.

—— Meerimgul de Turquia

Tela de alta qualidade, serviço rápido.

—— Daniel Castelo de Suíça

Estou Chat Online Agora

Custom Size Capacitive/ Resistive Touch Screen Panel Various Glass Thickness Acceptable

Custom Size Capacitive/ Resistive Touch Screen Panel Various Glass Thickness Acceptable
Custom Size Capacitive/ Resistive Touch Screen Panel Various Glass Thickness Acceptable Custom Size Capacitive/ Resistive Touch Screen Panel Various Glass Thickness Acceptable Custom Size Capacitive/ Resistive Touch Screen Panel Various Glass Thickness Acceptable Custom Size Capacitive/ Resistive Touch Screen Panel Various Glass Thickness Acceptable

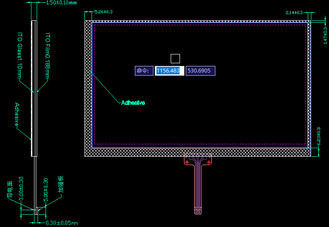

Imagem Grande :  Custom Size Capacitive/ Resistive Touch Screen Panel Various Glass Thickness Acceptable

Detalhes do produto:
Lugar de origem: China
Certificação: SGS ROHS
Número do modelo: CDG8671-7.0
Condições de Pagamento e Envio:
Quantidade de ordem mínima: negociável
Preço: Negotiable
Detalhes da embalagem: Caixas, Capboard, EPE, bandeja da bolha
Tempo de entrega: 25~28 dias de trabalho
Termos de pagamento: Western Union, MoneyGram, T/T, D/P, D/A, L/C
Habilidade da fonte: 100k/M
Descrição de produto detalhada
Marca: 7inch Nome: Módulo da tela de TFT tela de TFT de 7 polegadas
Tipo: TFT Serviço: ODM/OEM
Tela táctil: Tela táctil Resistive capacitivo
Luz alta: Painel do Lcd do tela táctil, painel Resistive do tela táctil

Touch screen Specifications
Touch Type: 4-Wire Resistive touch screen
Screen Sizes: 1.8"-21" Diagonal
Cable Interface: PC Serial/COM Port or USB Port
Touch Resolution: 1024 x 1024
Response Time: 10 ms. maximum
Activation Force: 10-100 grams per square centimer
Positional Accuracy: 3mm maximum error
Light Transmission: Film +Film>77%
Light Transmission: Film +Glass>83%
Scratch Resistance: 3H pencil hardness
Life Expectancy: Over 1 million
Temperature: Operating Temperature: -10 C ~+60 C
Storage Temperature: -20 C ~ +70 C
Choices of Glass Thickness: 0.7mm, 1.1mm, 2.0mm, 3.0mm, 5.5mm, Normal Glass, Chemically strengthened glass
Chemical Resistance: Alcohol, acetone, grease, and general household detergent
Software Drivers: Windows XP / 2000 / NT / ME / 98 / 95, Linux, Mac OS







Product Description



Size: 1.8", 2.1"~12.1", 15", 17", 19", 21" touch screen, customer size touch screen.

4-Wire resistive touch screen is the preferred solution for low cost applications. It is made up of high resistive ITO film and ITO glass/film that is separated by small spacer dots, it has the characteristics of thin, light, low power consumption, reliable, dustproof, moisture proof and oil proof. It's a reliable and affordable technology that is widely used by individuals and in less demanding workplace applications.


OUR ADVANTAGES


Superior service to every customer and provide production process pictures before shipment



We have excellent capabilities and sufficient capacity to support ODM/OEM.



High Quality:Original product and our own products all compliance with multiple inspection standards



Professional R&D:Employed engineers with over 10 years experiences in display industry.



Factory Area:Have our own factory with strong production capacity for regular and customized products



Stock For Sale: Good support for sampling and trial production



Support Customization: Available to do customized required products



Global Enterprise: Specializing in the integration of LED screen product development, production,sales and engineering installation services

Strict quality control: Strictly implement lSO 9001:2015 and lSO 14001:2015

management, integrate refined management into R & D and production to ensure product quality



Strong technical team: Professional,stable, pragmatic and innovative high-quality R&D

and production team



Customer First:The company implements the business philosophy of "honesty

humanity, quality first, service first"



One-stop: We have our factory, professional equipment to insure production



Price: We will provide you the best price, it is absolutely value for money



OEM/ODM: OEM/ODM are welcomed, we are trying to make all you needs

Touch Panel Factory
Custom Size Capacitive/ Resistive Touch Screen Panel Various Glass Thickness Acceptable 0
Custom Size Capacitive/ Resistive Touch Screen Panel Various Glass Thickness Acceptable 1
