Detalhes do produto:
Condições de Pagamento e Envio:
|
| Definição: | 160*100 | Cor do luminoso: | cor branca |
|---|---|---|---|
| Conexão: | FPC-solda | Tipo de exposição: | FSTN |
| Fonte de alimentação: | 3V | Relação: | Paralela |
| Luz solar legível: | sim | Escala do ângulo de visão: | 6 horas |
| Conector: | FFC-conector |

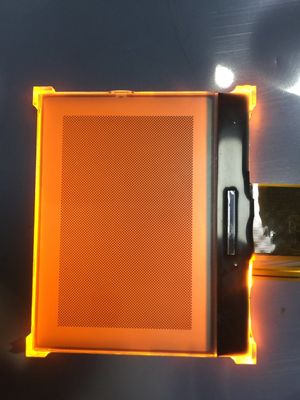

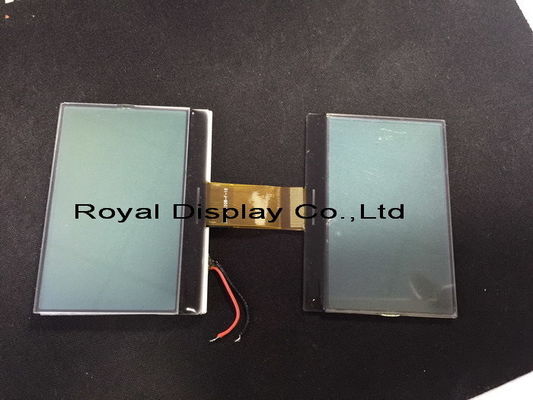

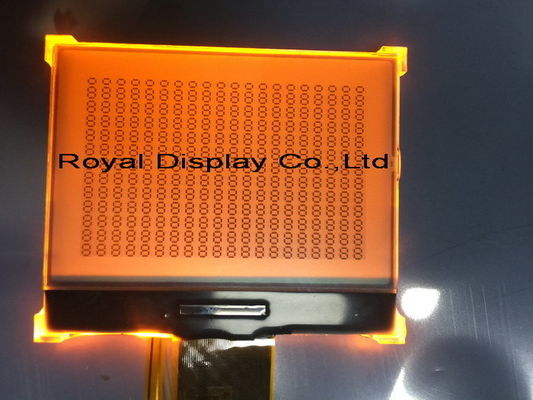

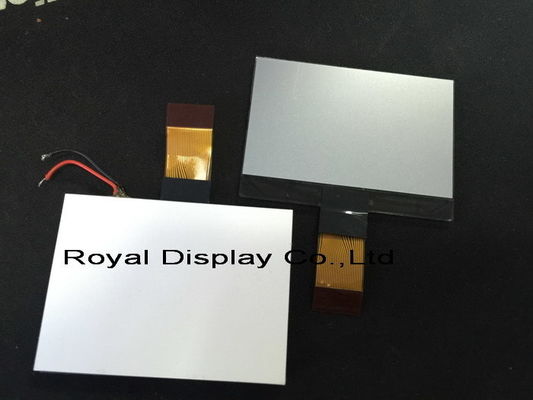

Transflective type characters 160x100 dots Mono Graphic lcd screen module display
PRODUCT DESCRIPTION
1. 160x100dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 160x100dots Graphic LCD Module |
| Model No. | RYG160100A |
| Dot Format | 160x100 |
| Outline (mm) | 55*46 |
| Viewing Area(mm) | 6:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7528 |
| Power supply | 3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
OUR SERVICE ADVANTAGES
1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.
2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.
3, Payment Terms: T/T, Western Union,L/C, PayPal
4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.
5, Service: Best after-sales service to ensure satisfaction from customers.
6, Warranty: Usually, product warranty for one year.
7, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
8. If mass production has any quality problem, customer can return it.
Feature
1. Low power consumption
2. High brightness and luminous intensity output
3. Easy assembly
4. High intensity and reliability
5. Low voltage and current operation
6. energy saving & long life
7. Solid-state LED chip based
8. Easy mounting on printed circuit board and sockets
9. Rhos&Reach approved
10. Better show effect and wide view angle
Our Factory
FAQ
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: What is the products application?
A: Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
Q: Are you a trader or a factory?
A: We are manufacturers, have production trademark and production workers.
Q: Can you produce on the OEM?
A: Yes, we can.
Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
